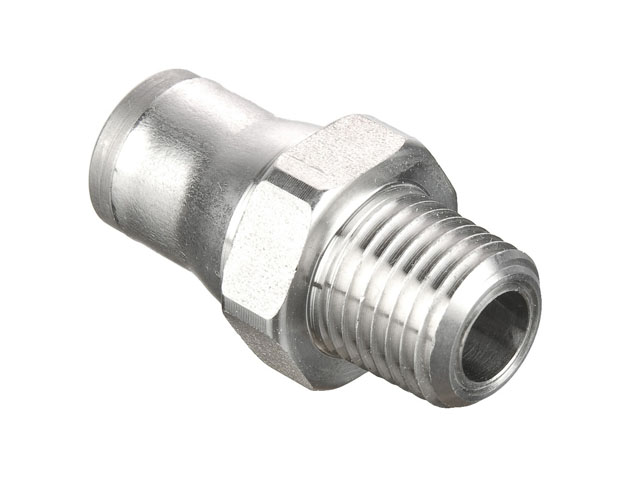

Legris LF3800 Series 3805 - Metric-BSPT
Metric-BSPT Male Connector - Push-to-Connect Fitting
| Part #: 3805 04 10 | Manufacturer: Parker |
|
Price/UOM: $17.71
|
Availability : 3 In Stock |
| UOM: EA |
In-Stock Symbol Meaning:
 Orders placed by Noon EST ship same day *
 Normally Ships in 1 - 2 weeks
Order by Noon, Partial ship same day*, balance ships in 1 - 2 weeks
* Applies to in-stock items and excludes weekends and holidays |
| Description: |
Parker Legris LF3800 Series Metric-BSPT Male Connector, Stainless Steel Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
|
Product Attributes
| Outer Diameter 1: | 4 mm |
| Thread 1: | 1/8 NPT |
| UOM: | EA |
| Trade Name: | Legris |
| Series: | Legris LF3800 |
| Configuration Type: | Tube to Male |
| Configuration Sub-Type: | Male Connector |
| Outer Diameter 1 Inch/mm: | mm |
| Inch/Metric: | Metric-BSPT |
| Thread 1 Type: | NPT |
| Pressure Range: | 7 to 290 psi |
| Operating Temperature: | -4˚ to +302˚F |
| Material - Seal: | FKM Fluoroelastomer |
| Material: | Stainless Steel |
| Parker Group: | Fluid Connector |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Part Number Tags: | 68PLS-4M-2R |
Catalog / Technical Data
Metric-BSPT Male Connector - Push-to-Connect Fitting
