811 Series

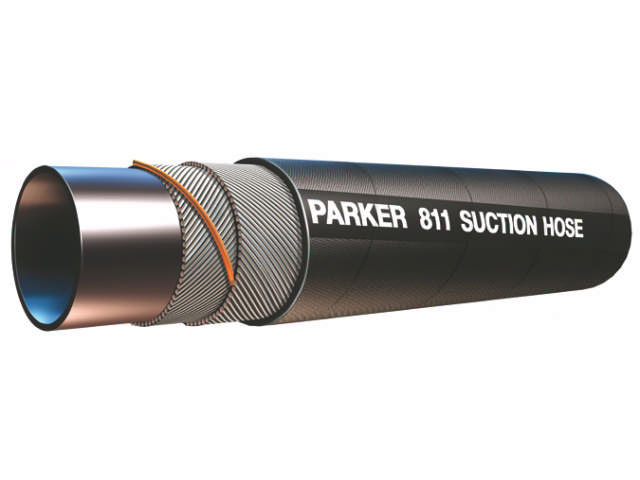

Low Pressure Rubber 1/2 SAE Minimum Bend Radius Hydraulic Suction And Return Hose
| Part #: 811-16 | Manufacturer: Parker |
|
Price/UOM: $18.60
|
Availability : 3964 In Stock |
| UOM: FT |
In-Stock Symbol Meaning:
 Orders placed by Noon EST ship same day *
 Normally Ships in 1 - 2 weeks
Order by Noon, Partial ship same day*, balance ships in 1 - 2 weeks
* Applies to in-stock items and excludes weekends and holidays |
| Description: |
Parker 811 Series low pressure suction and return line hose with 1/2 SAE minimum bend radius for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Multiple layers of fiber spiral and one helical wi
|
Product Attributes
| Inner Diameter: | 1 Inch |
| Working Pressure: | 70 PSI (5 bar) |
| Mating Fitting Series: | 81, 88 |
| Material: | Rubber |
| UOM: | FT |
| Series: | 811 |
| Hose Pressure Range: | Low |
| Inch/Metric: | Inch |
| Distinct Properties: | 1/2 SAE Minimum Bend Radius |
| Application: | Hydraulic Suction And Return |
| Working Pressure Range: | < 100 PSI (7 bar) |
| Mating End Fitting Series: | 81, 88 |
| Inner Diameter Inch/mm: | Inch |
| Parker Group: | Fluid Connector |
| Parker Division: | Hose Products |
| Specification: | SAE 100R4 |
| Application: | Hydraulic Suction And Return |
| Specific Application: | Petroleum base hydraulic fluids and lubricating oils |
| Distinct Properties: | 1/2 SAE Minimum Bend Radius |
| Part Number Tags: | N/A |
Catalog / Technical Data
Low Pressure Rubber 1/2 SAE Minimum Bend Radius Hydraulic Suction And Return Hose
