SELECTED FILTERS
Manually Selected
 |
Department: Valves |
|
Product Type: Pneumatic |
|
Product: Viking Lite Series Single Solenoid 3-way 2-position Valve |
Automatically Selected
| » | Trade Name: Viking Lite |
| » | Series: Viking Lite |
| » | Pneumatic Valve Type: Inline Valve |
| » | Port Inch/BSP: NPT |
| » | Valve Passages: 3-way |
| » | Valve Positions: 2-position |
| » | Offset Return Type: Spring Return |
| » | Operator Type: Solenoid |
| » | Operator Type Detail: Single |
| » | Override Type: Non-locking |
| » | Pilot Supply: Internal |
| » | Solenoid Connection: 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) |
| » | Supply Pressure Range: 43.5 to 145 PSIG (3 to 10 bar) |
| » | Operating Temperature: 14°F to 122°F (-10°C to 50°C) |
| » | Parker Division: Pneumatic |

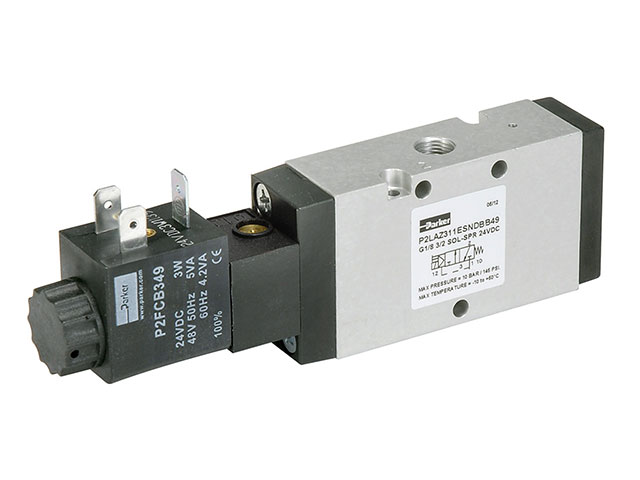

Viking Lite Series Single Solenoid 3-way 2-position Valve
Single Solenoid, 3-way, 2-position, Spring Return
Single Solenoid, 3-way, 2-position, Spring Return
Orders placed by Noon EST ship same day *
Normally Ships in 1 - 2 weeks
Order by Noon, Partial ship same day*, balance ships in 1 - 2 weeks
* Applies to in-stock items and excludes weekends and holidays
Bold items are most common and readily available.
Product Specifications |
P2LAZ391ESNDBB49 $99.24 Add to Cart More Info |
P2LAZ391ESNDBB53 $52.20 Add to Cart More Info |
P2LBZ392ESNDBB49 $96.03 Add to Cart More Info |
P2LBZ392ESNDBB53 $98.85 Add to Cart More Info |
|---|---|---|---|---|
| Availability | Call for Availability | Call for Availability | 8 In Stock | 4 In Stock |
| Normally Ships In | ||||
| Port | 1/8 NPT | 1/8 NPT | 1/4 NPT | 1/4 NPT |
| CV Factor | 0.6 | 0.6 | 1.5 | 1.5 |
| Operator Type Detail | Single | Single | Single | Single |
| Solenoid Voltage | 24VDC | 120VAC | 24VDC | 120VAC |
| Offset Return Type | Spring Return | Spring Return | Spring Return | Spring Return |
| Pilot Supply | Internal | Internal | Internal | Internal |
| Override Type | Non-locking | Non-locking | Non-locking | Non-locking |
| UOM | EA | EA | EA | EA |
| P2LAZ391ESNDBB49 | Call for Availability |
$99.24 |
Add to Cart | |
|
Port: 1/8 NPT CV Factor: 0.6 Operator Type Detail: Single Solenoid Voltage: 24VDC Offset Return Type: Spring Return Pilot Supply: Internal Override Type: Non-locking UOM: EA |
||||
| P2LAZ391ESNDBB53 | Call for Availability |
$52.20 |
Add to Cart | |
|
Port: 1/8 NPT CV Factor: 0.6 Operator Type Detail: Single Solenoid Voltage: 120VAC Offset Return Type: Spring Return Pilot Supply: Internal Override Type: Non-locking UOM: EA |
||||
| P2LBZ392ESNDBB49 | 8 In Stock |
$96.03 |
Add to Cart | |
|
Port: 1/4 NPT CV Factor: 1.5 Operator Type Detail: Single Solenoid Voltage: 24VDC Offset Return Type: Spring Return Pilot Supply: Internal Override Type: Non-locking UOM: EA |
||||
| P2LBZ392ESNDBB53 | 4 In Stock |
$98.85 |
Add to Cart | |
|
Port: 1/4 NPT CV Factor: 1.5 Operator Type Detail: Single Solenoid Voltage: 120VAC Offset Return Type: Spring Return Pilot Supply: Internal Override Type: Non-locking UOM: EA |
||||
| P2LCZ393ESNDBB49 | 1 In Stock |
$130.40 |
Add to Cart | |
|
Port: 3/8 NPT CV Factor: 2.5 Operator Type Detail: Single Solenoid Voltage: 24VDC Offset Return Type: Spring Return Pilot Supply: Internal Override Type: Non-locking UOM: EA |
||||
| P2LCZ393ESNDBB53 | Call for Availability |
$132.11 |
Add to Cart | |
|
Port: 3/8 NPT CV Factor: 2.5 Operator Type Detail: Single Solenoid Voltage: 120VAC Offset Return Type: Spring Return Pilot Supply: Internal Override Type: Non-locking UOM: EA |
||||
